Kitchen Dimensions: Code Requirements & NKBA Guidelines

Kitchen Design Rules (1)

Your kitchen is arguably the most important room in your home. It's where you prepare meals and where family and friends gather. Not only does it have to be aesthetically pleasing, but it has to be functional. Unfortunately, poorly designed kitchens are common in American homes, even in brand-new homes. If your kitchen is in need of a redesign, make sure the changes you make go beyond aesthetics.

These 31 essential kitchen design guidelines from the National Kitchen & Bath Association are a roadmap to good kitchen design. They cover everything from ergonomics to safety to general usability. If your current kitchen layout is violating any of these recommendations, you'll probably already be aware of the negative consequences poor kitchen design can have.

To give you the full picture, I also included references to the International Residential Code (IRC) where it applies. The IRC is the set of guidelines upon which most cities base their building codes.

Now, let's jump in and learn the standard dimensions and rules of thumbs we designers use to create kitchens that are delightful to use!

See also: Residential Bathroom Code Requirements & Design Tips

What's the difference between building codes and NKBA guidelines?

Building codes are the law

Building codes are an area's official rules on building safety. Anyone tackling a construction project (including a homeowner doing DIY work) is legally required to follow these rules. For all but the most minor cosmetic building projects, city inspectors will check to make sure that building codes were followed.

See also: What Happens if You Get Caught Remodeling without a Permit?

International building codes keep things uniform

Most cities and municipalities choose to adopt a set of universal building codes for residential construction that are developed and updated by the International Code Council (ICC). Collectively, these are referred to as the International Residential Code (IRC). Municipalities can they layer more specific rules on top of the IRC or otherwise amend certain rules.

When planning a project, the IRC is a good starting point, but always check your local codes. Here in Seattle, for instance, we have the Seattle Residential Code (SRC) that includes many amendments to the IRC.

The NKBA offers best practices for kitchen design

The National Kitchen and Bath Association (NKBA) publishes planning guidelines to help interior designers create kitchens that are both functional and safe. These are not legal requirements, like building codes, but they are extremely helpful in ensuring that a kitchen is not only safe but enjoyable to use. NKBA members, like CRD Design Build, refer to these guidelines regularly, as well as our own experience, to design kitchens that are as functional as they are beautiful.

See also: The Ultimate Guide to Kitchen Remodeling

Kitchen Building Codes and NKBA Recommendations

While you always have to follow your local code, you'll find that NKBA guidelines either take the code and build upon it or offer recommendations on which the code is silent. Below is a summary of the 31 NKBA kitchen design guidelines for full-scale kitchen design. I also included the relevant codes when applicable.

1. Kitchen entry door openings

Entry-Door-Openings-2

Narrow doors are constricting and give a kitchen a closed-off feel. For the sake of universal design, I recommend 36" doors wherever possible.

IRC

  • No specific IRC requirements.

NKBA

  • Doors should be at least 32" wide.
  • For 32" of clear width, the door width (from jamb to jamb) should be 34".
  • Since 34" is not a standard door width, most designers spec a 36" door, which is not usually a special order.
  • To meet ADA universal design standards, plan on 34" of clear opening, or a 36" door.

NOTE: If you are remodeling an existing kitchen, most cities will allow the existing door width to remain, even if they have a local code in place requiring a wider door. However, if the location of the door is moved, it usually will have to follow the code.

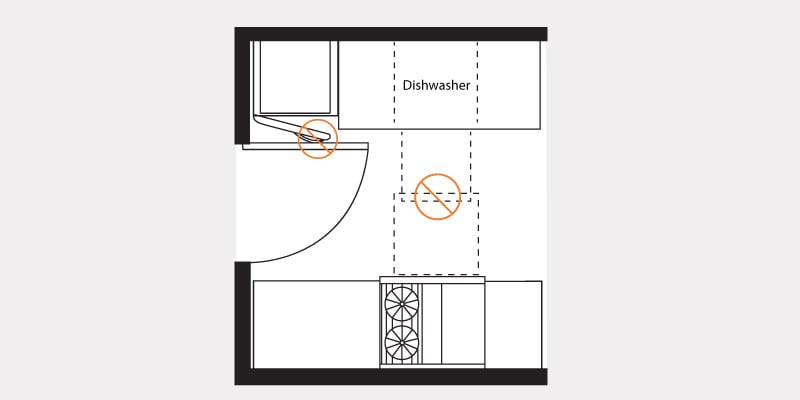

2. Kitchen door interference

2a-(2)-copy

Here's a common-sense recommendation: Design your kitchen so appliance doors (and regular doors) don't bump into one another. A good way to ensure that you can meet this guideline, even in a small kitchen, is to design an entry door that swings out into the hall instead of into the kitchen.

IRC

  • The IRC doesn't have any requirements relating to doors bumping into each other in the kitchen.

NKBA

  • No entry door should interfere with the safe operation of appliances.
  • Nor should appliance doors interfere with one another.

3. Distance between work centers

3a-(1)-1

If you divide a kitchen up into its functional components, you come up with the idea of "work centers." Simply put, these are the stove, the sink/prep area, and the refrigerator. Traditionally, this has been called the kitchen work triangle, and idea that dates back many decades. Since then, more work centers have made their way into kitchens, such as dishwashers, second sinks, warming drawers, etc. While not part of the building code, the kitchen work triangle concept still has validity, and cooking and cleanup flows smoother when the important functional areas are close at hand.

See also: Kitchen Layout 101: The Work Triangle and Zones

IRC

  • The IRC is silent on this point.

NKBA

  • In a kitchen with three work centers (cooking, cleanup/prep, and refrigerator), the sum of the distances between them should total no more than 26 feet.
  • No leg of the work triangle should measure less than 4 feet nor more than 9 feet.
  • When the kitchen includes additional work centers, each additional distance should measure no less than 4 feet nor more than 9 feet.
  • No work triangle leg should intersect an island or peninsula by more than 12 inches.

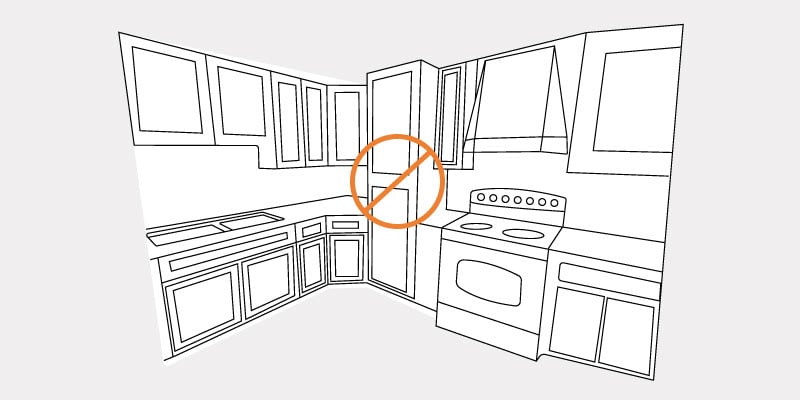

4. Separating work centers

4a-(1)

This rule complements the work triangle idea above. If the goal is easy movement between important work centers in the kitchen, it's important not to block the way with large objects.

IRC

  • No IRC requirements relating to separating work centers.

NKBA

  • A full-height, full-depth, tall obstacle [i.e., a pantry cabinet or refrigerator] should not separate two primary work centers.

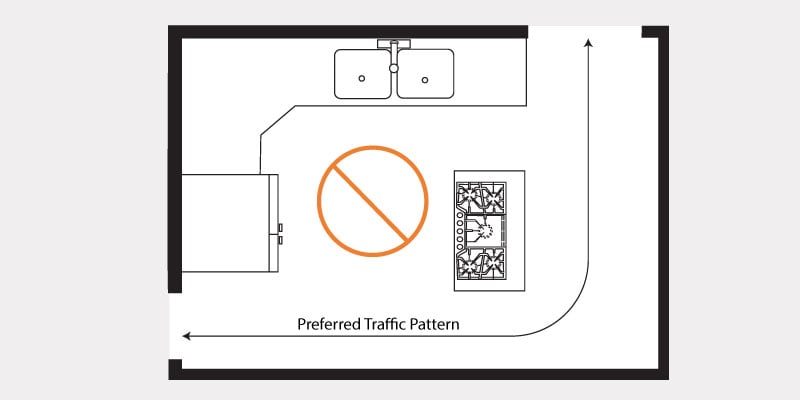

5. Work triangle traffic

5a-(1)-1

In an ideal world, people wouldn't have to walk right through where the cook is cooking. However, it's impossible to adhere to this guideline if you have a galley kitchen that is open on each end. We also see plenty of kitchens that have an exterior door, perhaps to a deck or patio, at the back of the kitchen. As long as family members and guests aren't constantly passing through the work triangle, your kitchen will still be functional.

IRC

  • There aren't any code restrictions against people needing to walk through a kitchen to access another room or an exterior door.

NKBA

  • No major traffic patterns should cross through the work triangle.

See also: Timeless Kitchen Design

6. Work aisle

6a-(1)

"Work aisle" is just a fancy way of saying "walking space between countertops." At CRD, we've been known to distinguish between "one-butt kitchens" and "two-butt kitchens." If you and your partner, for instance, like to cook together, it's important to follow the NKBA's recommendation and design ample space for the two of you to walk past each other without bumping into one another or the countertop.

IRC

  • Nothing to see here. The IRC doesn't comment on kitchen work aisles.

NKBA

  • The width of a work aisle should be at least 42 inches for one cook and at least 48 inches for multiple cooks.
  • The work aisle is the measurement between the fronts of your countertops, tall cabinets, and appliances.

NOTE: This rule usually applies to galley kitchens or kitchens with islands. If you have to choose between extra deep counters and work aisle space, I recommend you go with the latter. Extra counter space is great, but even more important is your ease of movement around your kitchen.

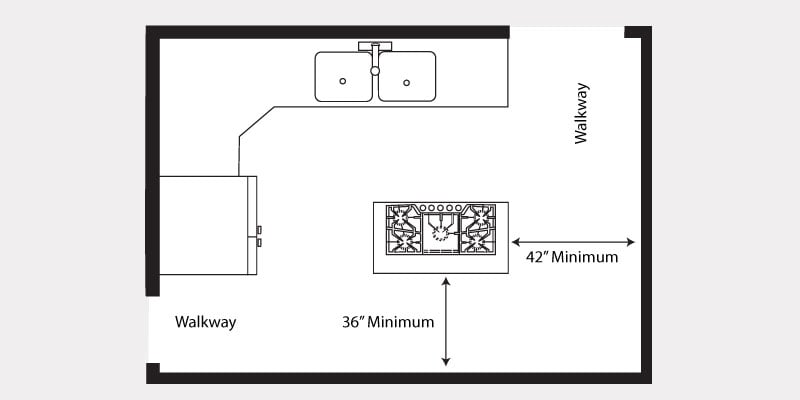

7. Walkways

7-(1)

First, a definition. What's the difference between a work aisle (defined above) and a walkway? The NKBA distinguishes between the place where the cook stands while cooking or cleaning up (the work aisle) and a walkway, which is simply a passageway for others to walk through the kitchen. The minimum space for a work aisle is quite a bit more generous than for a walkway. That's because a cook needs to be able to turn around, bend over to reach items out of lower cabinets, and pull hot pans of chocolate chip cookies out of the oven. (Mmm, cookies!)

IRC

  • Again, the IRC doesn't specifically comment on walkway width.

NKBA

  • The width of a walkway should be at least 36 inches.
  • If two walkways are perpendicular to each other, one walkway should be at least 42 inches wide.

8. Traffic clearance for seating

8-(1)

If you have a seating area built into your kitchen (most commonly a "breakfast bar"), you need to make sure there is enough space behind seated individuals. The required space varies depending on whether people need to be able to walk past, slide past, or don't need to pass by the seated individual at all.

IRC

  • The IRC doesn't dictate traffic clearance for seating.

NKBA

  • In a seating area where no traffic passes behind a seated diner, allow 32 inches of clearance from the counter/table edge to any wall or other obstruction behind the seating area.
  • If traffic passes behind the seated diner, allow at least 36 inches to slide past or at least 44 inches to walk past.
  • Any seating area with more than one seat requires a minimum of 36 inches of clearance.

NOTE: Wheelchair access in a seating area requires a minimum of 44" of clearance.

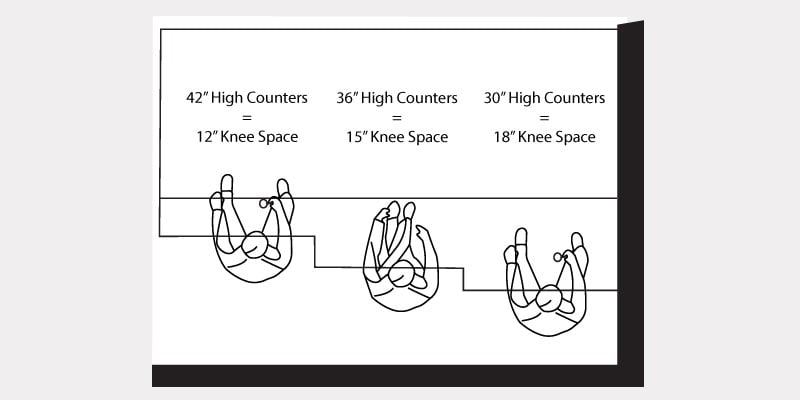

9. Seating space

9-(1)

To be comfortable while you're seated, you need plenty of knee and elbow room. If you are wondering if you have space for a breakfast nook, keep in mind that these knee-space guidelines apply to kitchen nook dimensions as well.

IRC

  • The IRC doesn't rule on seating space.

NKBA

  • Kitchen seating should be a minimum of 24-inch wide for each person and:
  • For 30-inch high tables/counters, a minimum 18-inch deep clear knee space for each seated diner.
  • For 36-inch high counters, a minimum 15-inch deep clear knee space for each seated diner.
  • For 42-inch high counters, a minimum 12-inch deep clear knee space for each seated diner.

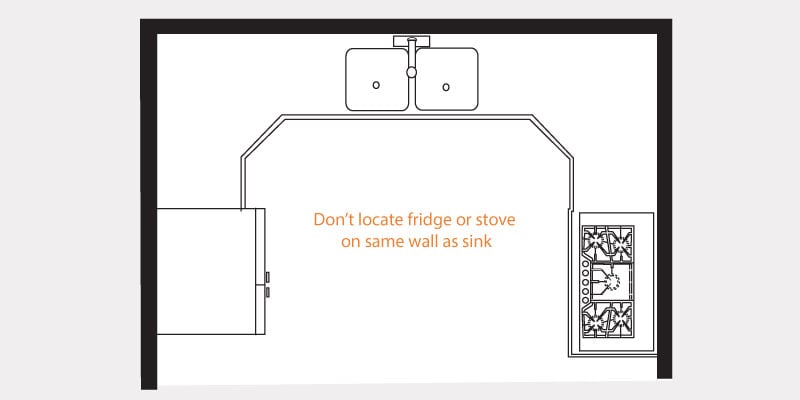

10. Cleanup/prep and sink placement

10aa-(1)

The effect of this rule is to prevent the refrigerator or stove being installed along the same wall as the sink. Given that your sink is the center of your food prep efforts, it's just easier to access those other work centers by turning 90 or 180 degrees on your heel than it would be to walk back and forth along one wall. This is a great rule in theory, but occasionally it can backfire if your kitchen has a very wide U-shape floorplan, which would require you to walk several paces from your sink to reach your appliances.

IRC

  • The IRC doesn't regulate the placement of kitchen sinks.

NKBA

  • If a kitchen has only one sink, locate it adjacent to or across from the cooking surface and refrigerator.

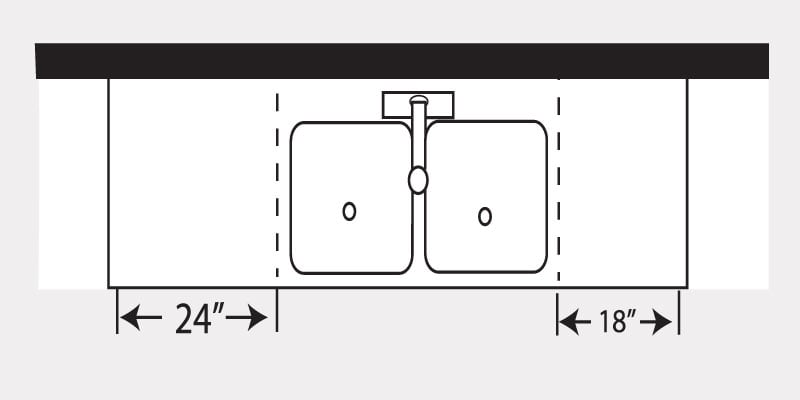

11. Cleanup/prep sink landing area

11a-(1)

There are few things that ruin the ergonomics of a kitchen faster than insufficient counter space on each side of the sink. If you've ever tried to wash dishes in a kitchen in which the sink was located right next to a wall or refrigerator, you know what I'm talking about.

IRC

  • The IRC doesn't have any rules relating specifically to prep sink placement.

NKBA

  • Include at least a 24-inch wide landing area to one side of the sink and at least an 18-inch wide landing area on the other side.

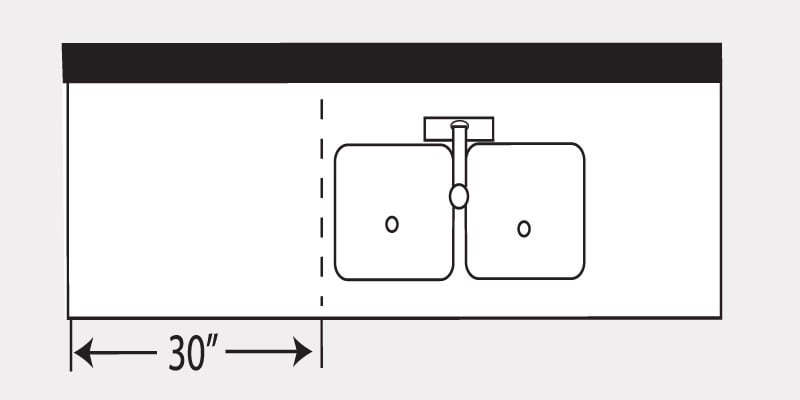

12. Food preparation work area

12-(1)

Every cook knows you need room to chop veggies, measure ingredients, and mix up the chocolate chip cookie dough. (There I go again!) The NKBA specifies a wide swath of countertop next to a sink for the cook's primary prep area. And, if you're like most people, your cleanup and prep areas center around the same sink, so this rule essentially supersedes Rule #11 above.

IRC

  • The IRC doesn't dictate food prep areas.

NKBA

  • Include a section of continuous countertop at least 30 inches wide by 24 inches deep immediately next to a sink for a primary preparation/work area.

See also: The One Thing You Need to Know about Great Kitchen Design

13. Dishwasher placement

13-(1)

This one is a no-brainer! Place your dishwasher near the sink and leave some space on either side of the door when it swings open.

IRC

  • The IRC doesn't specify anything about dishwasher placement as it relates to the sink.

NKBA

  • Locate nearest edge of the primary dishwasher within 36 inches of the nearest edge of a cleanup/prep sink.
  • Provide at least 21 inches of standing space between the edge of the dishwasher and countertop frontage, appliances and/or cabinets placed at a right angle to the dishwasher.

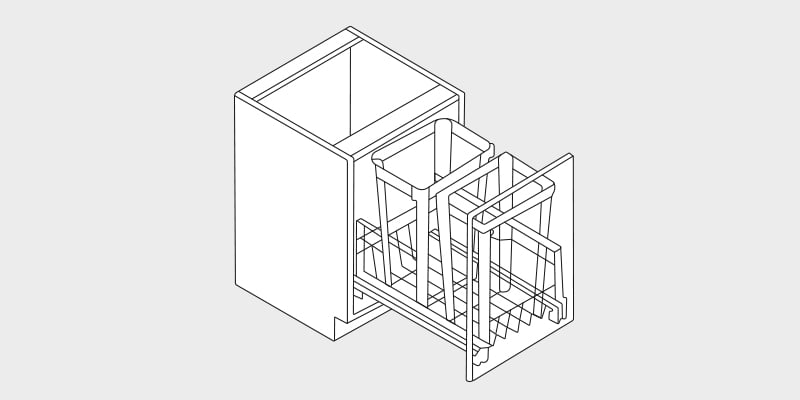

14. Waste receptacles

14 (1)

If you're deep in the zone, cooking up a meal, you don't want to have to pause constantly to walk to the other side of the room to throw away some scraps or packaging.

IRC

  • The IRC doesn't get into waste receptacle placement.

NKBA

  • Include at least two waste receptacles.
  • Locate one near the sink(s) and a second for recycling in the kitchen or nearby.

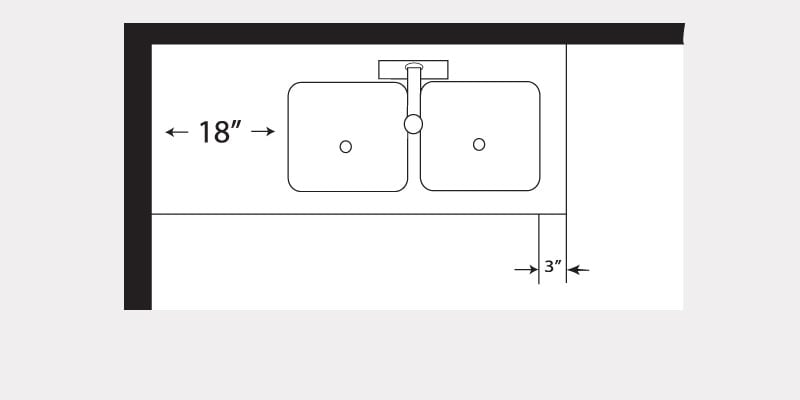

15. Auxiliary sink

15-(1)

If you have an extra sink, say in your kitchen island, it needs to have a bit of counter space on each side.

IRC

  • You guessed it! The IRC doesn't comment on auxiliary sink placement.

NKBA

  • At least 3 inches of countertop frontage should be provided on one side of the auxiliary sink and 18 inches on the other side.

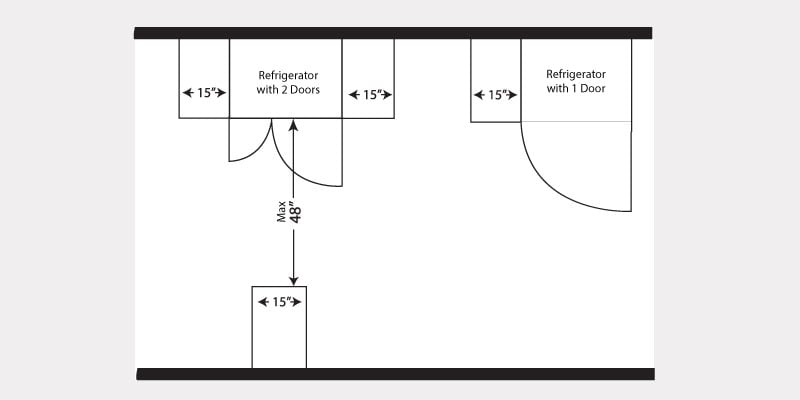

16. Refrigerator landing area

16-(1)

It's essential to have counter space close at hand for loading and unloading your refrigerator.

IRC

  • The IRC is silent on this point.

NKBA

  • Include at least 15 inches of landing area on the handle side of the refrigerator
  • OR 15 inches of landing area on either side of a side-by-side refrigerator
  • OR 15 inches of landing area no more than 48 inches across from the front of the refrigerator
  • OR 15 inches of landing area above or adjacent to any under-counter refrigeration appliance

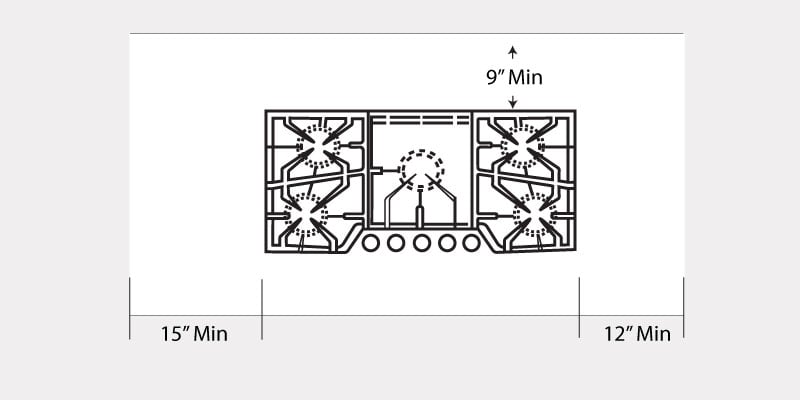

17. Cooking surface landing area

17-(1)

Landing areas are just as important for cooktops as they are for refrigerators. If your stove is mounted higher or lower than the rest of your countertops (not something I normally recommend), the landing area should be at the height of the cooktop. You don't want hot pans to slide off the edge of the cooktop or be boxed in.

IRC

  • No specific requirements from the IRC on this point.

NKBA

  • Include a minimum of 12 inches of landing area on one side of a cooking surface and 15 inches on the other side.
  • If the cooking surface is at a different countertop height than the rest of the kitchen, then the 12-inch and 15-inch landing areas must be at the same height as the cooking surface.
  • For safety reasons, in an island or peninsula situation, the countertop should also extend a minimum of 9 inches
    behind the cooking surface if the counter height is the same as the surface-cooking appliance.
  • For an enclosed configuration, a reduction of clearances shall be in accordance with the appliance manufacturer’s instructions or per local codes. (This may not provide adequate landing area.)

18. Cooking surface clearance

18 (1)

For fire safety, you need plenty of space between the top of your stove and the surface above it. A non-combustible surface usually means a range hood.

IRC

  • At least 30 inches of clearance is required between the cooking surface and an unprotected/combustible surface above it. (IRC M 1901.1)
  • If a microwave hood combination is used above the cooking surface, then the manufacturer’s specifications should be followed. (IRC M 1504.1)

NKBA

  • Allow 24 inches of clearance between the cooking surface and a protected noncombustible surface [e.g., a range hood] above it.

See also: 5 of the Most Durable Kitchen Materials

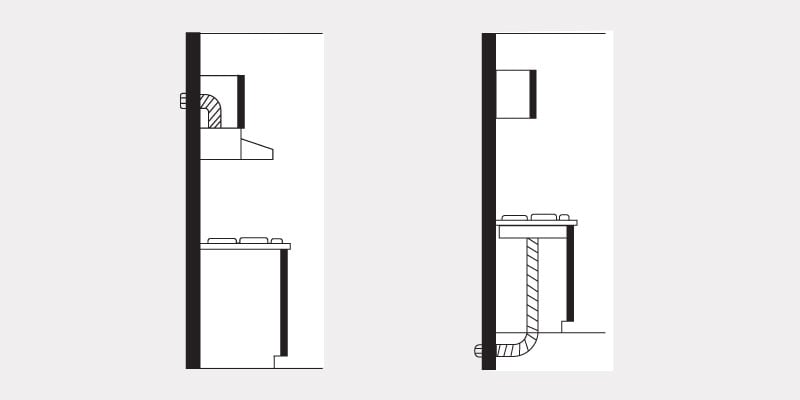

19. Cooking Surface Ventilation

19a-(1)

An exhaust fan over your cooktop (or incorporated into it) is essential in the kitchen, and it needs to have sufficient flow to be effective. In newer, more airtight homes, you need some way to replace the air that is exhausted.

IRC

  • Manufacturer’s specifications must be followed. (IRC G 2407.1, IRC G 2447.1)
  • The minimum required exhaust rate for a ducted hood is 100 cfm and must be ducted to the outside. (IRC M 1507.3)
  • Make-up air may need to be provided. Refer to local codes. (IRC G 2407.4)

NKBA

  • Provide a correctly sized, ducted ventilation system for all cooking surface appliances; the recommended minimum is 150 CFM.

20. Cooking Surface Safety

20 (3)

Window curtains above a stove are an obvious no-no. A window that opens and lets in the breeze could blow out the gas flame on your range and create a different sort of safety hazard.

IRC

  • The IRC doesn't require anything specific here, but common sense dictates not putting flammable materials over the stove.

NKBA

  • Do not locate the cooking surface under an operable window.
  • Window treatments above the cooking surface should not use flammable materials.
  • A fire extinguisher should be located near the exit of the kitchen away from cooking equipment.

See also: Here's What To Do After a Fire

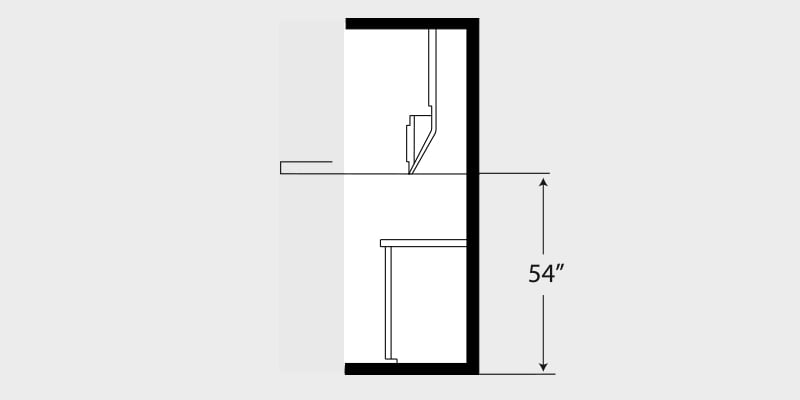

21. Microwave Oven Placement

21 (1)

Most microwaves are placed too low for ease of use. Ideally, the bottom of a microwave will be a few inches below the top of the user's shoulders. Under-counter drawer-style microwaves are an ergonomic alternative, but they shouldn't be mounted too low to the floor.

IRC

  • There are no specific IRC microwave placement guidelines.

NKBA

  • The ideal location for the bottom of the microwave is 3 inches below the principle user's shoulder but no more than 54 inches above the floor.
  • If the microwave is below the countertop the bottom must be at least 15 inches off the finished floor.

22. Microwave Landing Area

22 (1)

Wherever you place your microwave, it should have a handy countertop spot nearby to set a hot plate on when you pull it out of the appliance.

IRC

  • The IRC tends not to focus on convenience or ergonomics, so it is silent on this point.

NKBA

  • Provide at least a 15-inch landing area above, below or adjacent to the handle side of a microwave oven.

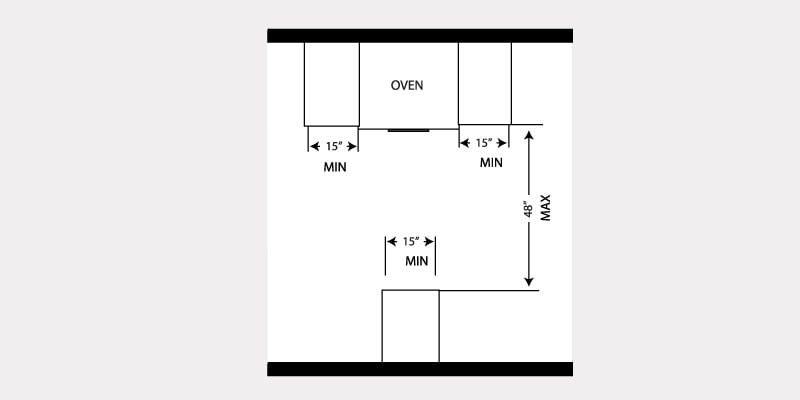

23. Oven Landing Area

23-(1)

An oven needs a bit of countertop on either side on which a hot pan can be placed. If there isn't room next to the oven, that's okay, as long as there is some free countertop space directly across from it.

IRC

  • Nothing from the IRC on this point.

NKBA

  • Include at least a 15-inch landing area next to or above the oven.
  • At least a 15-inch landing area not more than 48 inches across from the oven is acceptable if the appliance does not open into a walkway.

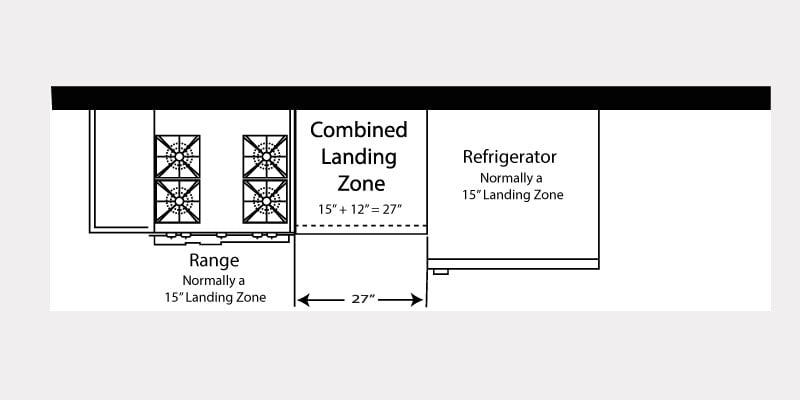

24. Combining Landing Areas

24-(1)

By this point, you may be wondering how all of the NKBA recommendations can possibly work together. If every appliance needs its own dedicated landing area, and good design dictates that appliances can't be too far apart, how does it all fit together? NKBA's solution is the combined landing zone. You take the larger of the two overlapping landing zones, add a foot, and you're done. After all, the same space can be used for a hot pan from the oven and a gallon of milk from the fridge!

IRC

  • Keep moving. Nothing to see here.

NKBA

  • If two landing areas are adjacent, determine a new minimum by taking the longer of the two landing area requirements and adding 12 inches.

25. Countertop Space

25-(1)

In my mind, this should be rule #1! Countertop space is so important to good kitchen design. If you plan to use many small countertop appliances, like a microwave, a toaster, or a coffee maker, then plan for even more countertop space than the recommendation.

IRC

  • There is nothing specific in the IRC about counter space.

NKBA

  • A total of 158 inches of countertop frontage, 24 inches deep, with at least 15 inches of clearance above, is needed to accommodate all uses.

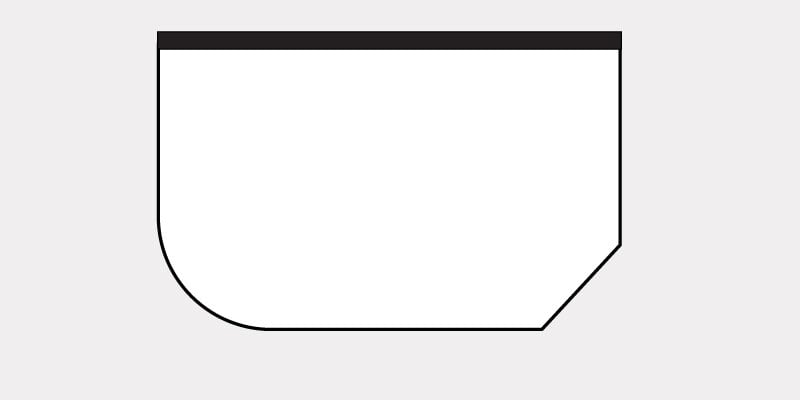

26. Countertop Edges

26-(1)

Rounded or chamfered countertop corners are not only safer, but they are less prone to chipping if your countertop is a solid surface, like natural stone or quartz.

IRC

  • The IRC doesn't specify anything on this point.

NKBA

  • Specify clipped or round corners rather than sharp edges.

See also: 10 Advantages of Quartz Countertops Over Granite

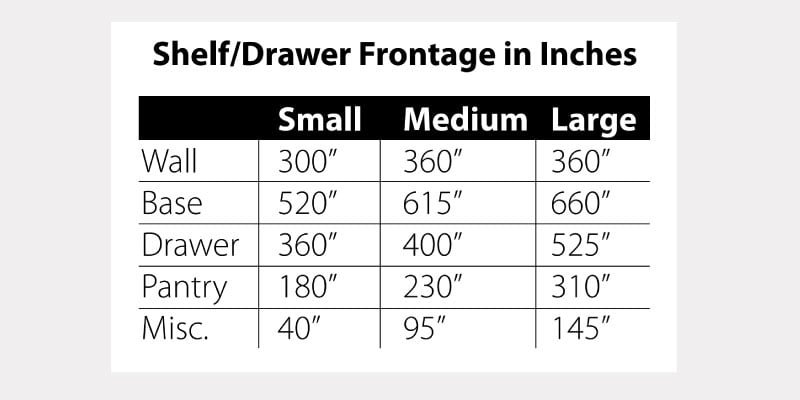

27. Storage

27-Storage

Ample, well-designed storage is another must for a functional kitchen. The larger the kitchen, the more shelves and drawers it should have.

IRC

  • Nothing in the IRC about storage space.

NKBA

  • The total shelf/drawer frontage is:
    • 1,400 inches for a small kitchen (150 square feet or less)
    • 1,700 inches for a medium kitchen (151 to 350 square feet);
    • 2,000 inches for a large kitchen (351 square feet or more).
  • The totals for wall, base, drawer, and pantry shelf/ drawer frontage can be adjusted upward or downward as long as the recommended total stays the same.
  • Do not apply more than the recommended amount of storage in the miscellaneous category to meet the total
    frontage recommendation.
  • Storage areas that are more than 84” above the floor must be counted in the miscellaneous category.
  • Shelf and drawer frontage is determined by multiplying the cabinet size by the number and depth of the shelves or drawers in the cabinet, using the following formula:
    • Cabinet width in inches x number of shelves and drawers x cabinet depth in feet (or fraction thereof ) =
      Shelf and Drawer Frontage
  • Storage/organizing items can enhance the functional capacity of wall, base, drawer, and pantry storage, and should be selected to meet user needs.

28. Storage at Cleanup/Prep Sink

Kitchens need lots of storage space, but they also need a good portion of that space to be easily accessible from the main sink area. While cooking and cleaning up, you need ready access to utensils, spices, and cleaning items.

IRC

  • Not applicable.

NKBA

  • Of the total recommended shelf/drawer frontage, the following should be located within 72 inches of the centerline of the main cleanup/prep sink:
    • At least 400 inches for a small kitchen;
    • At least 480 inches for a medium kitchen;
    • At least 560 inches for a large kitchen.

29. Corner Cabinet Storage

29 (1)

Good design means putting every space to good use. Corner cabinet space is sometimes underutilized or inaccessible.

IRC

  • Believe it or not, the IRC doesn't have an opinion on corner cabinet storage, or any kitchen cabinet storage for that matter.

NKBA

  • At least one corner cabinet should include a functional storage device.
  • This guideline does not apply if there are no corner cabinets.

See also: What To Do with the #%$@ Corner Cabinet? Kitchen Corner Cabinet Design

30. Electrical Receptacles

30 (1)

What are those little buttons in the middle of some of your receptacles that pop out and shut off the power? They're part of a ground-fault interrupt system that could save your life! GFCI outlets are required in damp environments like kitchens to help prevent shock by instantly depowering if they detect a fault.

IRC

  • GFCI (Ground-fault circuit interrupter) protection is required on all receptacles servicing countertop surfaces
    within the kitchen. (IRC E 3802.6)

NKBA

  • Refer to IRC E 3801.4.1 through E 3801.4.5 for receptacle placement and locations.

See also: What Happens if You Get Caught Remodeling without a Permit?

31. Lighting

Proper lighting is essential in a kitchen. You will want a good combination of natural light, general all-around light, and task lighting. Pendants and under-cabinet lighting serve well for the latter.

IRC

  • At least one wall-switch controlled light must be provided. Switch must be placed at the entrance. (IRC E 3803.2)
  • Window/skylight area, equal to at least 8% of the total square footage of the kitchen, or a total living space which includes a kitchen, is required. (IRC R 303.1, IRC R 303.2)

See also: A Practical Guide to Window Placement

NKBA

  • In addition to general lighting required by code, every work surface should be well illuminated by appropriate
    task lighting.
See also: The 5 Main Types of Kitchen Lighting

Putting it all together

Kitchen remodeling is too often thought of in terms of updating tired-looking surfaces, but proper design is way more than skin deep. If you are planning to remodel your kitchen, these 31 rules of thumb are a great place to start. But don't stop here. I encourage you to speak to an experienced interior designer to truly optimize your new kitchen layout (and ensure you don't run afoul of your local building code). Your designer will present you with several kitchen layouts to choose from, each conforming to these design standards and optimized for your unique needs. It's amazing how much a custom-designed kitchen can add to your enjoyment of your home and quality of life.

My interior design colleagues and I here at CRD Design Build would be happy to discuss your kitchen remodeling plans. Please feel free to  drop us a line  to discuss your dream kitchen. We would love to be of service.

Article Categories: Kitchens

Guide to Hiring a Remodeler

This comprehensive guide walks you through all the steps of choosing who will design and build your project, vetting remodeling companies, and ensuring that you have the best experience.

Guide to hiring a remodeler
